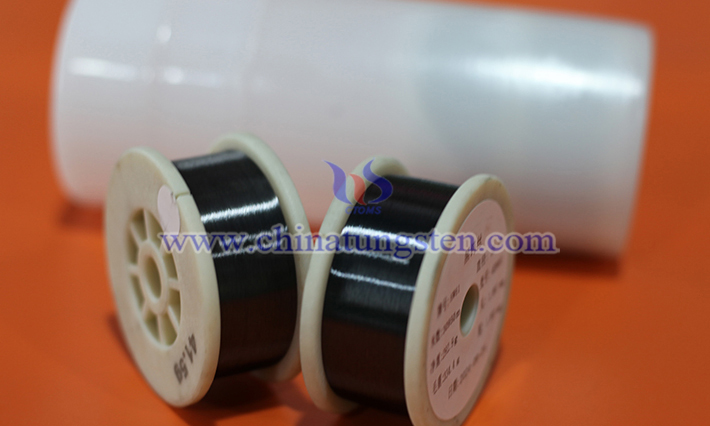

Tungsten wire serves as the core light-emitting element in projector filaments. Its unique physical and chemical properties, combined with the working principles of projectors, are specifically reflected in the following aspects:
1. Core Material for Efficient Light Emission
High Melting Point: Tungsten has a melting point of 3410°C, the highest of all metals. Projector filaments must operate at high temperatures, and tungsten wires can withstand such extreme temperatures without melting, ensuring stable light emission.
Principle of Incandescence: When current passes through a tungsten wire, the resistance generates heat, causing the filament to reach an incandescent state (surface temperature approximately 2500-3000°C), thereby radiating a continuous spectrum of visible light. This direct and efficient light emission method is the core technology of traditional projectors (such as halogen lamp projectors).
2. Key to Extended Lifespan
Resistance to Evaporation and Recrystallization: Tungsten atoms gradually evaporate at high temperatures, but projector filaments mitigate this process through the following design features:
Spiral Wrapping Structure: Increases the surface area to volume ratio, lowers local temperatures, and reduces the evaporation rate.
Halogen Recycling Technology: The lamp is filled with halogen gas (such as hydrogen bromide). The evaporated tungsten atoms react with the halogen to form tungsten halide, which decomposes in the cold zone of the filament. The tungsten is then redeposited back into the filament, forming a cycle that significantly extends lifespan.
High-Purity Tungsten Wire: Impurities lower the melting point and accelerate evaporation, so projector filaments are typically made of high-purity tungsten to ensure durability.
3. Guaranteeing Stable Light Output
Resistance Stability: Tungsten's resistance changes little with temperature, allowing it to maintain a relatively stable current flow even at high temperatures, preventing light intensity flickering or filament overheating and damage due to resistance fluctuations.
Mechanical Strength: Tungsten wires maintain their structural integrity even at high temperatures and are less susceptible to breakage due to thermal stress or vibration, ensuring long-term stable operation of the projector.
4. Synergy with Other Technologies
Working with the reflector: The tungsten wire is located at the focal point of the projector's reflector. The light it emits is reflected by the reflector and focused into a parallel beam, which is then projected onto the screen through a lens system, achieving efficient light utilization.
Working with the color wheel/filter: In a DLP or LCD projector, the white light provided by the tungsten wire is separated by a color wheel or filtered by a filter to generate the three primary colors of red, green, and blue, ultimately composing a color image. The spectral continuity of the tungsten wire is crucial for color reproduction.
5. Advantages Compared to Other Light Source Technologies
Compared to LED/Laser: Although LED and laser light sources have longer lifespans, tungsten wire lamps still offer advantages in color temperature stability, spectral continuity, and cost, making them particularly suitable for professional projection applications requiring high color accuracy.
